Description
The devil is in the details. At CUBE we know that only too well, which is why the Aim Race's 100mm suspension fork features a lockout ? so you can reduce bob and bounce when you're riding hard. With grippy tyres, powerful Shimano hydraulic disc brakes and the wide range of Shimano's Cues 10-speed gears, you've all you need to build your own adventure. And, with Size Split, there's an Aim Race that'll fit you perfectly.

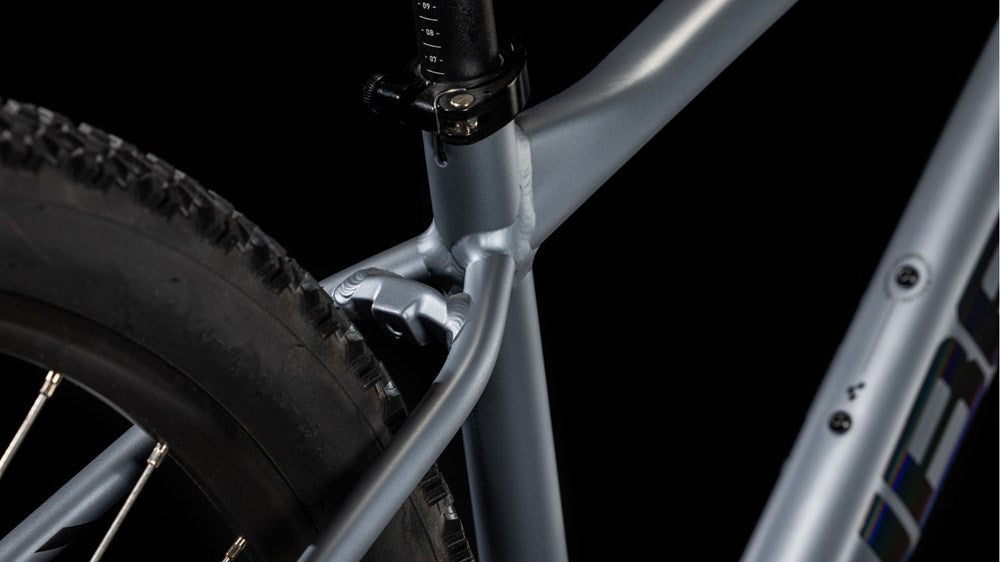

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Carefully thought out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
Specifications
FRAME
Material: Aluminium Lite, AMF, Double Butted
Features: Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
SIZE
Available Sizes: Size Split: 27.5: XS, S // 29: M, L, XL, XXL
SUSPENSION
Fork: SR Suntour XCT Disc, 100mm, Lockout
Headset: CUBE FPH868p, Tapered, Semi-Integrated
COCKPIT
Stem: CUBE Performance Stem, 31.8mm
Handlebar: CUBE Rise Trail Bar, 680mm
Grips: ACID React
DRIVETRAIN & BRAKES
Rear Derailleur: Shimano Cues RD-U6000-GS, 10-Speed
Shifters: Shimano Cues SL-U6000, Rapidfire-Plus
Brake System: Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
Bottom Bracket: Thun Paso-ML, 73mm BSA
Crankset: Prowheel CC10Y-NW, 32T, 170mm
Cassette: Shimano Cues CS-LG400, 11-48T
Chain: KMC eGlide
WHEELS
Rims: CUBE EX25, 32H, Disc, Tubeless Ready
Front Hub: Shimano HB-QC300, QR, Centerlock
Rear Hub: Shimano FH-QC300-HM, QR, Centerlock
Tyres: CUBE MTB, 2.25
FINISHING KIT
Saddle: CUBE PP MTB ACID Venec Lite
Seat Post: CUBE Performance Post, 27.2mm
Seat Clamp: CUBE Varioclose, 31.8mm
WEIGHT & MISC
Weight: 14.6 kg
