Description
Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
Bike Specifications
FRAME
Material: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Colour: White'n'Blue'n'Red
SIZE
Size Split: 27.5: XS, S // 29: M, L, XL, XXL
SUSPENSION

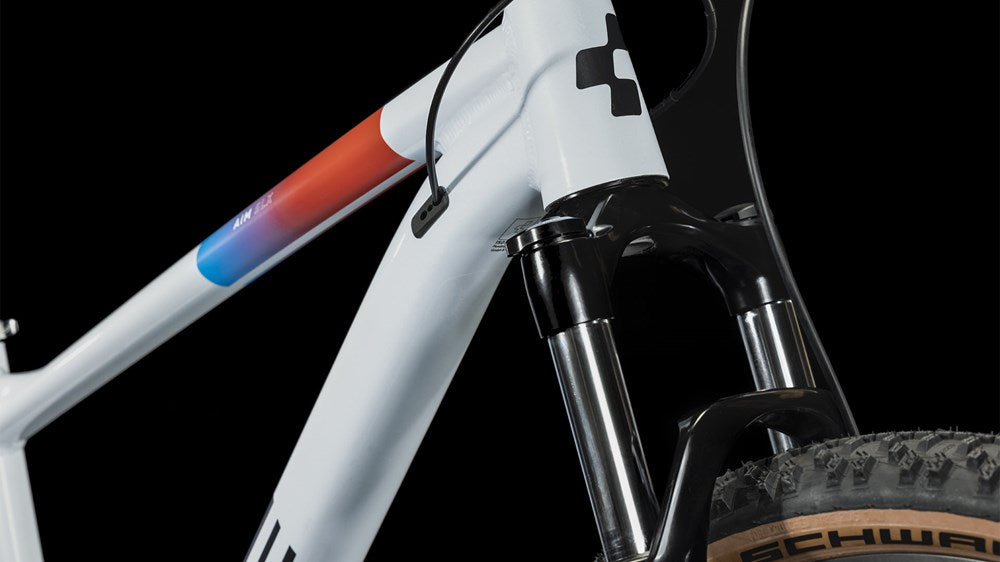

Fork: RockShox Judy Silver TK Coil, 100mm, Lockout
HEADSET & COCKPIT
Headset: CUBE FPH868, Semi-Integrated
Stem: CUBE Performance Stem Race, 31.8mm
Handlebar: CUBE Rise Trail Bar, 680mm
DRIVETRAIN & BRAKES
Rear Derailleur: Shimano Cues RD-U6000-GS, 11-Speed
Shifters: Shimano Cues SL-U6000-11R, w/o Display
Brake System: Shimano BR-MT200/UR300, Hydraulic Disc Brake, PM/FM (160/160)
Bottom Bracket: Feimin FP-B902N, 73mm BSA
Crankset: Prowheel CC10Y-NW 32T, 170mm

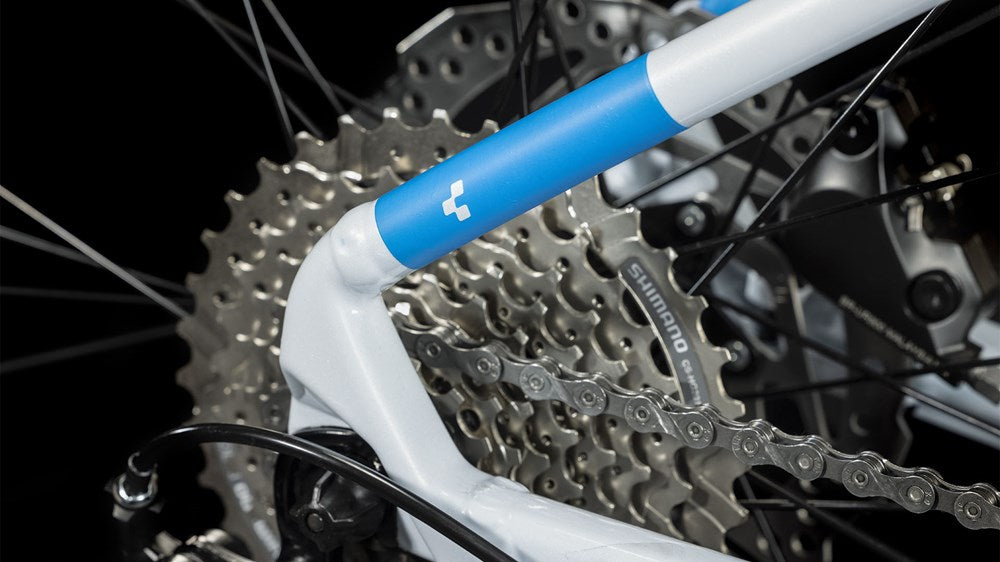

Cassette: Shimano Cues CS-LG400-11, 11-50T
Chain: Shimano CN-LG500
WHEELS
Rims: CUBE ZX20, 32H, Disc
Front Hub: Shimano Cues HB-QC300 Disc, QR, Centerlock
Rear Hub: Shimano Cues FH-QC300 Disc, QR, Centerlock
Tyres: Schwalbe Smart Sam, Active, 2.25
FINISHING KIT
Pedals: ACID PP MTB
Saddle: Natural Fit Venec Lite
Seat Post: CUBE Performance Post, 27.2mm
Seat Clamp: CUBE Varioclose, 31.8mm
WEIGHT & MISC
Bike Weight: 13.8 kg
Bike Weight and Rider Weight: 115 kg
