Description
With up to 60Nm of pedal assistance on tap, the AMS Hybrid ONE44 C:68X SLX's lightweight Bosch SX drive and 400Wh battery – combined with our premium C:68X® carbon frame – is all you need to ride every trail with a little extra boost, but without all the excess baggage. The top tube-mounted controller and handlebar-mounted Mini Remote put you in control, and it's PowerMore-ready for an optional extra 250Wh of range. Shimano's peerless XT Di2 1x12 gears and a carbon crankset get your power to the Newmen Beskar 30 wheels shod with Schwalbe 2.4in Nobby Nic and Wicked Will tyres. A Fox 36 Float SL Performance fork is paired with a Float Performance shock to smooth the trail and help keep the rubber side down. There's a remote dropper post, of course. And Shimano's powerful 4-piston XT hydraulic disc brakes ensure you're always on top of things.
The AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X® carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal Cable Routing complements the frame's sleek silhouette and there's a lightweight Direct Mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding.
Specifications
FRAME
Material: C:68X® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
SUSPENSION
Fork: Fox 36 Float SL Performance GRIP, Tapered, 15x110mm, 140mm
Rear Shock: Fox Float Performance, 210x55mm, Adjustable LSR w/ 2-Pos. Lever
Bearings: Front: 30x8mm, Rear: DU-Bushing 12.7mm
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
E-BIKE SYSTEM
Drive Unit: Bosch Drive Unit Performance SX max. 60Nm (BDU31), 32kph
Battery: Bosch CompactTube 400
Charger: Bosch 4A
Display: Bosch System Control, incl. Mini Remote
COCKPIT
Stem: Newmen Evolution SL 318.4, 31.8mm
Handlebar: Newmen Advanced 318.25, Carbon, 780mm
Grips: ACID Disrupt, Soft Compound
DRIVETRAIN & BRAKES
Rear Derailleur: Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System
Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Shifters: Shimano XT Di2 SW-M8250-IR, Direct Attach
Brake System: Shimano XT BR-M8220, Hydr. Disc Brake (203/180)

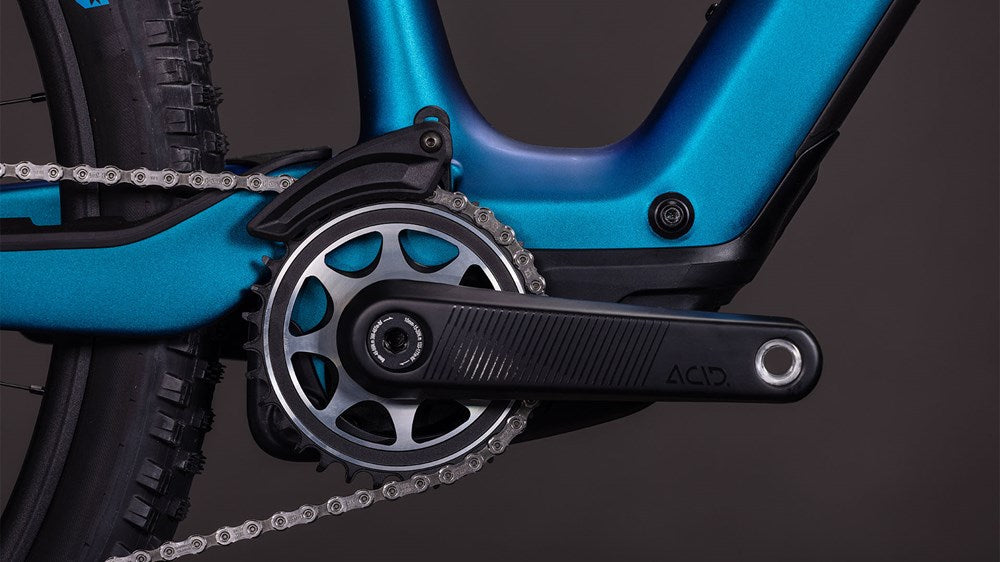

Crankset: ACID MTB Hybrid Carbon, 32T
Cassette: Shimano XT CS-M8200, 10-51T
Chain: Shimano CN-M8100
WHEELS
Wheelset: Newmen Beskar Base 30 base/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front Tyre: Schwalbe Nobby Nic, Super Ground, Addix Soft, Kevlar, 2.4
Rear Tyre: Schwalbe Wicked Will, Super Ground, Addix Speedgrip, Kevlar, 2.4
FINISHING KIT
Saddle: ACID Venec EMTB Trail 140
Seat Post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Pedals: ACID PP MTB
WEIGHT & MISC
Weight: 17,5 kg
Maximum System Weight: 135 kg
Maximum Rider Weight: 110 kg
Colour: nebula´n´black
