Description
The CUBE Kathmandu Hybrid C:62 Pro has two gramme-shaving tricks up its sleeve. For starters, there's the C:62® carbon frame and fork, complete with rugged IC 3.0 rear carrier. It's as tough and versatile as it is light and lively to ride. Second, Bosch's lightweight SX motor and 400Wh battery provides up to 60Nm of pedal assistance without needlessly weighing you down. Shimano's reliable 1x11 Cues gears deliver power via 50mm Schwalbe G-One Overland tyres, and there's a powerful set of Shimano hydraulic disc brakes to ensure you can slow and stop safely, whatever the weather. It's all you need for adventures, near or far.
The CUBE Kathmandu Hybrid C:62's Easy Entry frame isn't just straightforward to ride and elegant in its simplicity – it's also extremely sophisticated and adaptable. Built from our proven C:62® carbon for the best blend of strength and low weight, we incorporated the Bosch 400Wh battery inside the frame structure for clean looks and the best dust and splash protection. Advanced Internal Cable Routing complements the frame's organic appearance and the neat, versatile IC 3.0 rear carrier provides a sturdy, adaptable platform for all your carrying needs. Precise, nimble steering is handled by the full carbon fork, and we used Boost axles front and rear to ensure stable handling even when fully loaded. We like to think we've thought of everything...
Specifications
FRAME
Material: C:62® Advanced Twin Mold, Efficient Comfort Geometry, Boost148, Fixed Integrated Battery, Flat Mount Disc, Integrated Carrier 3.0, Advanced Internal Cable Routing, UDH™
SIZE
Available Sizes: S, M, L, XL
SUSPENSION
Fork: CUBE C:62® Technology, 1 1/2" - 1 1/2" Tapered, Internal Light Cable Option, 15x110mm
Headset: ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
E-BIKE SYSTEM
Drive Unit: Bosch Drive Unit Performance SX max. 60Nm (BDU31), 32kph
Battery: Bosch CompactTube 400
Charger: Bosch 2A
Display: Bosch Purion 200 with Integrated Display
COCKPIT
Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar: CUBE Comfort Trail Bar, 700mm
Grips: ACID Travel Comfort
DRIVETRAIN & BRAKES
Rear Derailleur: Shimano Cues RD-U6000-GS
Shifters: Shimano Cues SL-U6000, Rapidfire-Plus
Brake System: Shimano BR-MT200, Hydr. Disc Brake (180/180)
Crankset: ACID MTB Hybrid Pro, 38T
Cassette: Shimano Cues CS-LG400, 11-50T
Chain: KMC eGlide
WHEELS
Wheelset: ACID Pro 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tyres: Schwalbe G-ONE Overland, PerfL, 50-622
FINISHING KIT
Saddle: ACID Sequence 180
Seat Post: Newmen Evolution, 31.6mm
Pedals: ACID PP Trekking
Front Light: ACID Front Light PRO-E 150 X-Connect, 12V, DC
Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand: ACID FM Pure Kickstand
Mudguards: ACID 60 Integrated Carrier 3.0
Bell: Reich Cycle Bells Ringsound

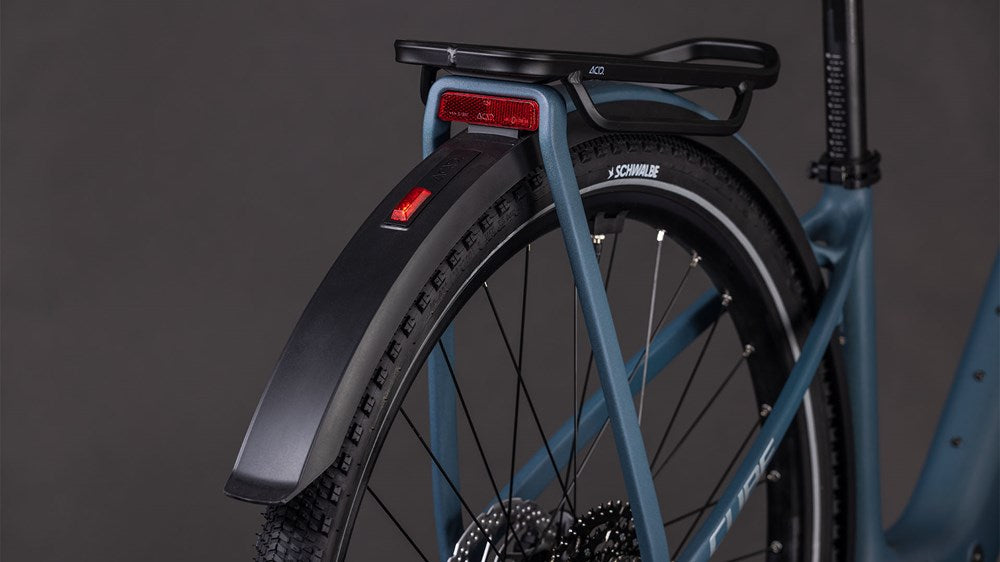

Carrier: ACID Integrated Carrier 3.0, CUBE Adapter Compatible
WEIGHT & MISC
Weight: 18,3 kg
Maximum System Weight: 135 kg
Maximum Rider Weight: 110 kg
Colour: spectralblue´n´prism
