Description
The CUBE Kathmandu Hybrid EXC is built to go places. We started with Bosch's CX motor and an 800Wh PowerTube battery, to give you up to 100Nm of pedal assistance on your way to work or to adventure. Then we chose Shimano's legendary XT 1x12 gears, for their huge range and dependable performance. Added 4-piston Shimano hydraulic disc brakes with ABS, so you know you can always slow and stop safely. And finished with a smooth, comfortable Fox 34 AWL Float Sport suspension fork. But that's not quite all, because of course there's also an adjustable stem, dropper seatpost and our strong, elegant and versatile Integrated Carrier 3.0, plus a full complement of accessories.
The Kathmandu Hybrid's Easy Entry frame is designed to do exactly what it says, making adventurous cycling as accessible and straightforward as possible. The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chain guard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.
Specifications
FRAME
Material: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH™, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, Integrated Seatclamp
SIZE
Available Sizes: S, M, L, XL
SUSPENSION
Fork: Fox 34 Float Sport AWL , Tapered, 15x110mm, E-Bike Optimized, 100mm
Headset: ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
E-BIKE SYSTEM
Drive Unit: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38), 32kph
Battery: Bosch PowerTube 800
Charger: Bosch 2A
Display: Bosch LED Remote
COCKPIT
Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar: CUBE Comfort Trail Bar HD, 700mm
Grips: ACID Travel Comfort
DRIVETRAIN & BRAKES
Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters: Shimano Deore SL-M6100-R, Rapidfire Plus
Brake System: Shimano BR-MT420 ABS, Hydr. Disc Brake (203/203) (203)
Crankset: ACID MTB Hybrid Pro, 40T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12
WHEELS
Wheelset: ACID SLX 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tyres: Schwalbe Marathon Efficiency, PerfL, 55-622
FINISHING KIT
Saddle: ACID Sequence 180
Seat Post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Pedals: ACID PP Trekking
Front Light: ACID Front Light PRO-E 150 X-Connect, 12V, DC
Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand: ACID FM Pure Kickstand
Mudguards: ACID 65 Integrated Carrier 3.0
Bell: Reich Cycle Bells Ringsound

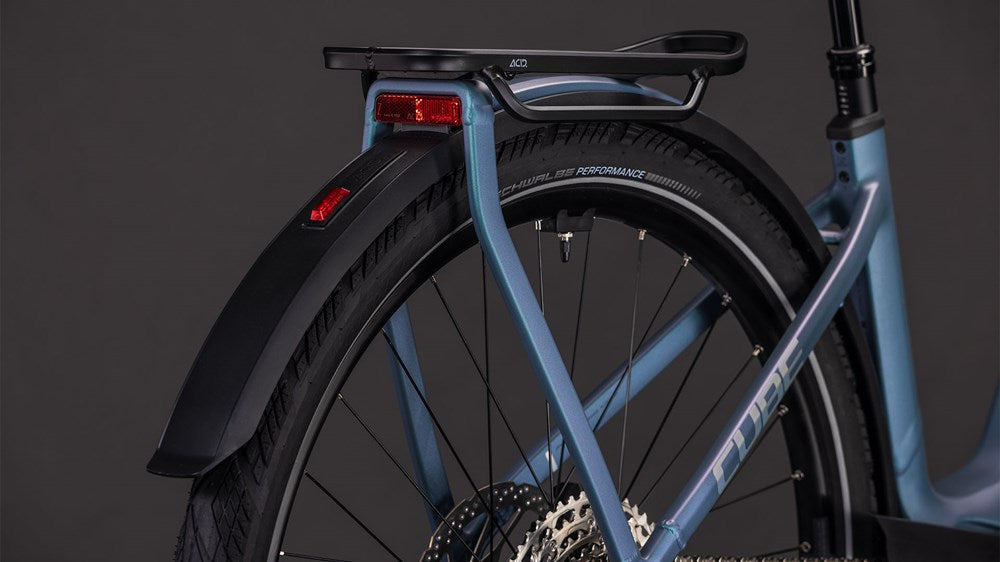

Carrier: ACID Integrated Carrier 3.0, CUBE Adapter Compatible
WEIGHT & MISC
Weight: 29,2 kg
Maximum System Weight: 160 kg
Maximum Rider Weight: 125 kg
Colour: smaragdgrey´n´prism
