Description
The Stereo Hybrid ONE22 Pro 800 puts you in control. With the powerful Bosch CX drive system, Purion 200 controller and 800Wh battery, you've plenty of pedal assistance for even extended exploring. A Suntour air suspension fork and rear shock work with CUBE's proven kinematics to deliver ground-hugging comfort. Grippy Schwalbe 2.6in tyres and strong Shimano hydraulic disc brakes help control your speed. And easy-to-use Shimano Cues 1x10 gears keep you moving forward. Time for exploring...
With added Bosch power and proven CUBE suspension kinematics, our trail explorer is a bike for all reasons. Suspension design that's stood the test of time is designed to work with a 120mm fork – including a mudguard mount – for the best in comfort and control. We fitted an 800Wh battery to power the Bosch CX drive unit, for worry-free extended rides. The UDH dropout, integrated cable routing and Direct Mount chain guard are all examples of the attention to detail we put into all our frames. And, with Size Split, you're sure to be able to find the perfect fit.
Specifications
FRAME
Material: Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp
SIZE
Available Sizes: S, M, L, XL
SUSPENSION

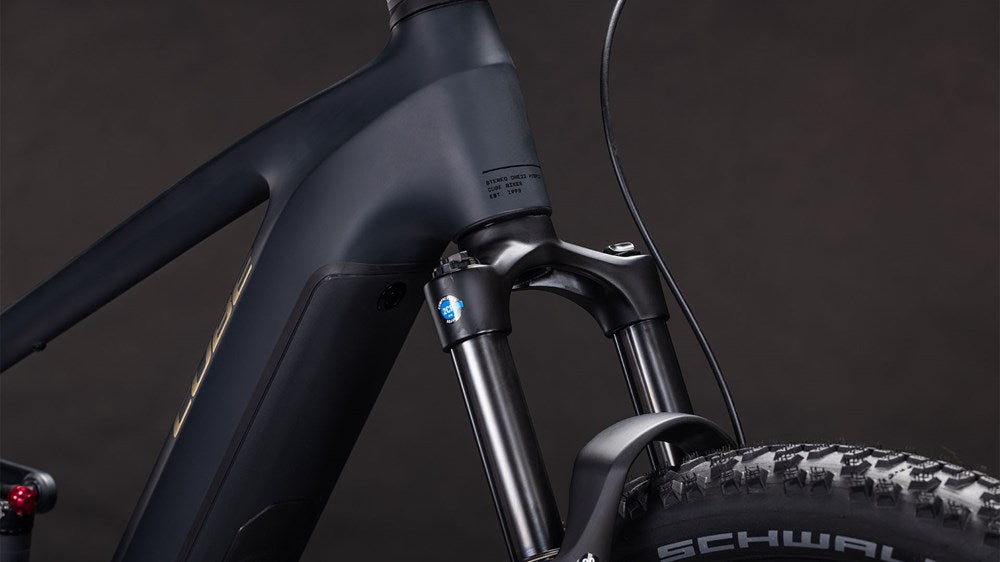

Fork: SR Suntour XCR34X 2CR Air, Tapered, 15x110mm, 120mm
Rear Shock: SR Suntour EdgeX R 185x52.5mm, Rebound Adjust, Trunnion Mount
Headset: ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface
E-BIKE SYSTEM
Drive Unit: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38), 32kph
Battery: Bosch PowerTube 800
Charger: Bosch 2A
Display: Bosch Purion 200 with Integrated Display
COCKPIT
Stem: CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar: CUBE Rise Trail Bar 35
Grips: ACID Hybrid Perform
DRIVETRAIN & BRAKES
Rear Derailleur: Shimano Cues RD-U6000-GS, 10-Speed
Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Shifters: Shimano Cues SL-U6000, Rapidfire-Plus
Brake System: Shimano BR-MT420, Hydr. Disc Brake (203/203)
Crankset: ACID MTB Hybrid Pro, 38T
Cassette: Shimano Cues CS-LG300, 11-48T
Chain: KMC eGlide
WHEELS
Wheelset: ACID PRO 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tyres: Schwalbe Smart Sam, Active, 2.6
FINISHING KIT
Saddle: ACID Venec EMTB Plus 145
Seat Post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Pedals: ACID PP MTB
WEIGHT & MISC
Weight: 26,7 kg
Maximum System Weight: 150 kg
Maximum Rider Weight: 120 kg
Colour: night´n´chrome
