Description
You can tell from its purposeful stance and mullet wheel sizing that the Stereo Hybrid ONE77 HPC Race means business. But the devil, as always, is in the detail. The Bosch CX drive and 800Wh PowerTube battery work with Shimano's XT 12-speed gears to swallow tricky routes whole. Meanwhile, a pair of Magura MT Louise hydraulic disc brakes and 2.4in Schwalbe Magic Mary and Big Betty tyres have the grip you need to stay in control, whatever the trail throws your way. A Suntour Aion 38X fork and Triair 2CR piggyback shock help keep the rubber side down and rolling. And, with a remote dropper post thrown into the mix, the only question is which line you'll take back down the mountain.
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
Specifications
FRAME
Material: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
SUSPENSION
Fork: SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm

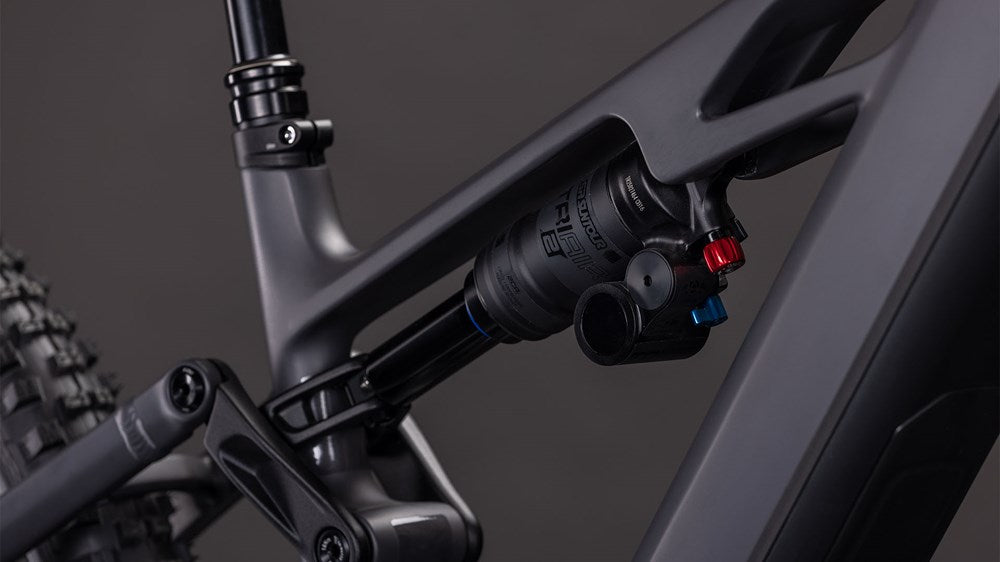

Rear Shock: SR Suntour TRIAir 2CR 230x65mm
Bearings: Front: 30x8mm, Rear: DU-Bushing 12.7mm
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
E-BIKE SYSTEM
Drive Unit: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38), 32kph
Battery: Bosch PowerTube 800
Charger: Bosch 2A
Display: Bosch System Control, incl. Mini Remote
COCKPIT
Stem: CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar: CUBE Rise Trail Bar 35
Grips: ACID Disrupt, Soft Compound
DRIVETRAIN & BRAKES
Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Shifters: Shimano Deore SL-M6100, Rapidfire-Plus
Brake System: Magura Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Crankset: ACID MTB Hybrid Pro, 36T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12
WHEELS
Wheelset: ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front Tyre: Schwalbe Magic Mary, Performance, 2.4
Rear Tyre: Schwalbe Big Betty, Performance, 2.4
FINISHING KIT
Saddle: ACID Venec EMTB Trail 140
Seat Post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Pedals: ACID PP MTB
WEIGHT & MISC
Weight: 25,4 kg
Maximum System Weight: 150 kg
Maximum Rider Weight: 120 kg
Colour: irongrey´n´black
