Cube Stereo Hybrid ONE77 HPC Race 800 liquidorange´n´orange
Description
You can tell from its purposeful stance and mullet wheel sizing that the Stereo Hybrid ONE77 HPC Race means business. But the devil, as always, is in the detail. The Bosch CX drive and PowerTube battery work with Shimano's reliable Deore 12-speed gears to swallow tricky routes whole. Meanwhile, a pair of Magura MT Thirty hydraulic disc brakes and 2.4in Schwalbe Magic Mary and Big Betty tyres have the grip you need to stay in control, whatever the trail throws your way. A Suntour Aion 38X fork and Edge Evo 2 CR shock help keep the rubber side down and rolling. And, with a remote dropper post thrown into the mix, the only question is which line you'll take back down the mountain.

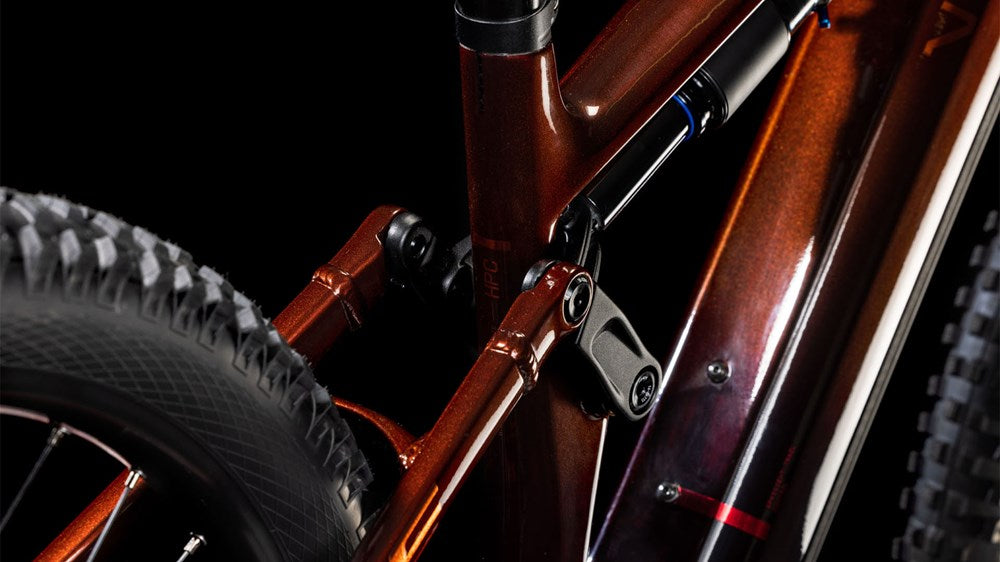

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. Integrated Cable Routing for super-clean looks and reduced maintenance and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a direct mount chainguard to keep you driving forwards even when the going gets rough.
Specifications
FRAME
Material: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle Features: Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
SIZE
Available Sizes: S, M, L, XL
SUSPENSION
Fork: SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm
Rear Shock: SR Suntour Edge EVO 2CR 230x65mm Bearings: Front: 30x8mm, Rear: DU-Bushing 12.7mm
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
E-BIKE SYSTEM
Drive Unit: Gen 5 Bosch Drive Unit Performance Line CX, Smart System 32kph
Battery: Bosch PowerTube 800 Charger: Bosch 2A Display: Bosch System Control incl. Mini Remote
COCKPIT
Stem: CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar: CUBE Rise Trail Bar 35
Grips: ACID Disrupt, Soft Compound
DRIVETRAIN & BRAKES
Rear Derailleur: Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Shifters: Shimano Deore SL-M6100, Rapidfire-Plus
Brake System: Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) Crankset: ACID MTB Hybrid Pro, 36T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12
WHEELS
Rims: CUBE EX30, 32H, Disc, Tubeless Ready
Front Hub: CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt Rear Hub: CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt
Front Tyre: Schwalbe Magic Mary, Performance, 2.4
Rear Tyre: Schwalbe Big Betty, Performance, 2.4
FINISHING KIT
Saddle: ACID Venec Lite
Seat Post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seat Clamp: CUBE Semi-Integrated
WEIGHT & MISC
Weight: 25.2 kg
Maximum Rider Weight: 150 kg
Colour: liquidorange´n´orange
