Description
Challenging trails need a suspension set-up to match, which is why we gave the Stereo Hybrid ONE77 HPC SLX a Fox Float 38 Rhythm fork and Float X Performance shock. Together, they deliver 170mm of rock-swallowing travel front and rear, with loads of adjustment so you can get it dialled. The Bosch CX drive and 800Wh PowerTube battery give your pedalling an unobtrusive but very effective boost, via Shimano's legendary XT 1x12 gears – and the top tube-mounted Kiox 400C display shows you exactly what's going on. Meanwhile, the mullet Newmen Performance 30 wheelset – shod with Continental Argotal and Kryptotal 2.4in tyres – is held in check by Shimano's new XT hydraulic disc brakes. Add it all up and, with a remote dropper seatpost, too, it's the perfect formula for big mountain fun.
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
Specifications
FRAME
Material: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
SUSPENSION
Fork: Fox 38 Float Rhythm GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm
Rear Shock: Fox Float X Performance, 230x65mm, Adjustable LSR w/ 2-Pos. Lever
Bearings: Front: 30x8mm, Rear: DU-Bushing 12.7mm
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
E-BIKE SYSTEM
Drive Unit: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38), 32kph
Battery: Bosch PowerTube 800
Charger: Bosch 4A
Display: Bosch Mini Remote
COCKPIT
Stem: CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar: CUBE Rise Trail Bar 35
Grips: ACID Disrupt, Soft Compound
DRIVETRAIN & BRAKES
Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Shifters: Shimano Deore SL-M6100, Rapidfire-Plus

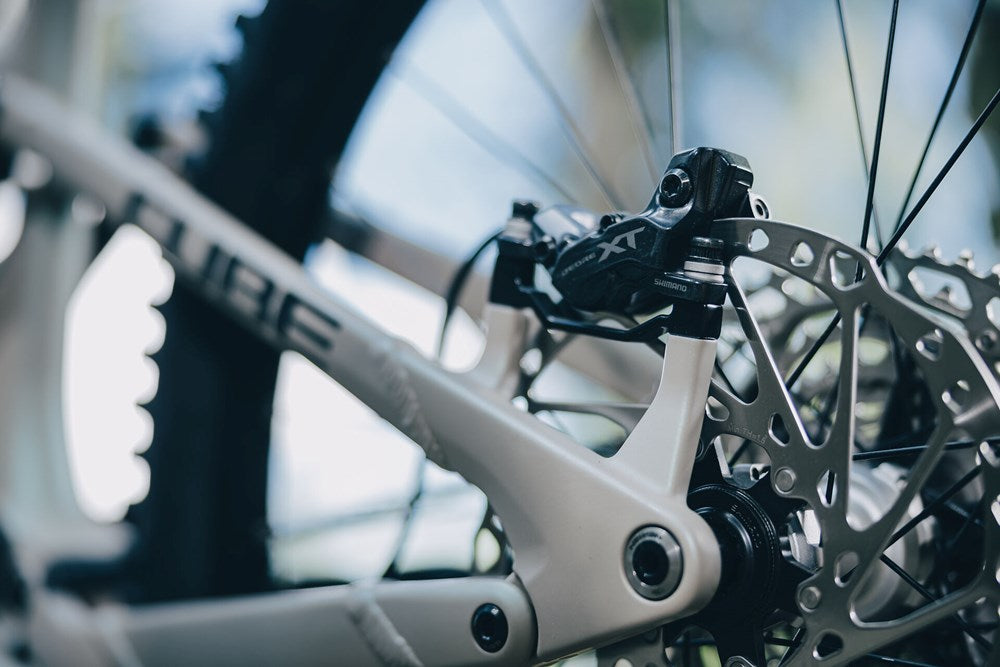

Brake System: Shimano XT BR-M8220, Hydr. Disc Brake (203/203)
Crankset: ACID MTB Hybrid Pro, 36T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12
WHEELS
Wheelset: Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Front Tyre: Conti Argotal, Enduro Soft, Tubeless Ready, 2.4
Rear Tyre: Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
FINISHING KIT
Saddle: ACID Venec EMTB Trail 140
Seat Post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Pedals: ACID PP MTB
WEIGHT & MISC
Weight: 24,7 kg
Maximum System Weight: 160 kg
Maximum Rider Weight: 125 kg
Colour: glintsand´n´black
